Universal Structure Predictor:
Evolutionary Xtallography

What is USPEX?

USPEX (Universal Structure Predictor: Evolutionary Xtallography...and in Russian "uspekh" means "success" - owing to the high success rate and many useful results produced by this method) is a method developed by the Oganov laboratory since 2004. The problem of crystal structure prediction is very old and does, in fact, constitute the central problem of theoretical crystal chemistry. In 1988 John Maddox wrote that:

"One of the continuing scandals in the physical sciences is that it remains in general impossible to predict the structure of even the simplest crystalline solids from a knowledge of their chemical composition solids such as crystalline water (ice) are still thought to lie beyond mortals' ken".

USPEX code solves this problem and allows to predict crystal structure with arbitrary P-T conditions by knowing only chemical composition of the material. Nowdays, it is used by over 8500 researchers worldwide. The First Blind Test of Inorganic Crystal Structure Prediction shows that USPEX outperforms other methods in terms of efficiency and reliability. The method continues to be rapidly developed.

In addition to crystal structure prediction, USPEX can work in other dimensionalities and predict the structure of nanoparticles, polymers, surfaces, interfaces and 2D-crystals. It can very efficiently handle molecular crystals (including those with flexible and very complex molecules). Moreover, it can predict stable chemical compositions and corresponding crystal structures, given just the names of the chemical elements. In addition to this fully non-empirical search, USPEX allows one to predict also a large set of robust metastable structures and perform several types of simulations using various degrees of prior knowledge.

USPEX can also be used for finding low-energy metastable phases, as well as stable structures of nanoparticles, surface reconstructions, molecular packings in organic crystals, and for searching for materials with desired physical (mechanical, electronic) properties. The USPEX code is based on an efficient evolutionary algorithm developed by A.R. Oganov's group, but also has options for using alternative methods (random sampling, metadynamics, corrected particle swarm optimization algorithms). USPEX is interfaced with many ab initio codes, such as VASP, SIESTA, GULP, Quantum Espresso, CP2K, CASTEP, LAMMPS, and so on.

Recently our group (based in Skoltech, MIPT) in collaboration with Centre for Distributed Computing (based in IITP RAS) and applied optimization department (based in FRC CSC RAS) has launched citizen science project USPEX@home. We invite everyone to help us in the development of new materials by sharing your computational resources.

Test of USPEX: 40-atom cell of MgSiO3 post-perovskite. Left - structure search using local optimisation of random structures, Right - evolutionary search with USPEX. While random search did not produce the correct structure even after 120000 steps, USPEX found the stable structure in fewer than 1000 steps.

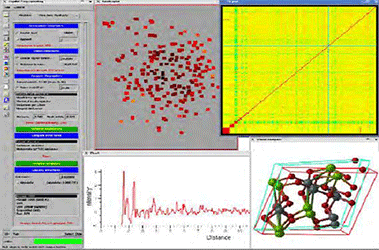

Analysis and visualization

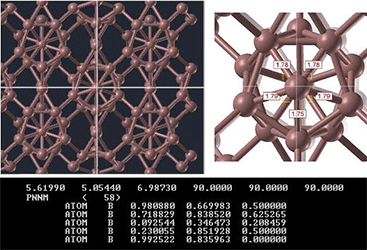

Output of USPEX can be visualised by many codes, e.g. VESTA. USPEX also produces a number of figures in the pdf-format, allowing quick insight into the results. In addition, we highly recommend the STM4 code, which was written by Mario Valle to be fully compatible with USPEX.

Features of the code

  1. Prediction of the stable and metastable structures knowing only the chemical composition. Simultaneous searches for stable compositions and structures are also possible.
  2. Incorporation of partial structural information is possible
    1. constraining search to fixed experimental cell parameters, or fixed cell shape, or fixed cell volume,
    2. starting structure search from known or hypothetical structures,
    3. assembling crystal structures from predefined molecules, including flexible molecules.
  3. Efficient constraint techniques, which eliminate unphysical and redundant regions of the search space. Cell reduction technique (Oganov & Glass, 2008).
  4. Niching using fingerprint functions (Oganov & Valle, 2009; Lyakhov, Oganov, Valle, 2010).
  5. Initialization using fully random approach, or using space groups and cell splitting techniques (Lyakhov, Oganov, Valle, 2010).
  6. On-the-flight analysis of results - determination of space groups (and output in CIF-format), calculation of the hardness, order parameters, etc.
  7. Prediction of the structure of nanoparticles and surface reconstructions.
  1. Restart facilities, enabling calculations to be continued from any point along the evolutionary trajectory.
  2. Powerful visualization and analysis techniques implemented in the STM4 code (by M.Valle), fully interfaced with USPEX.
  3. USPEX is interfaced with VASP, SIESTA, GULP, DMACRYS, CP2k, QuantumEspresso, LAMMPS, ATK, MOPAC, FHI-aims, Gaussian codes. Interfacing with other codes is easy.
  4. Submission of jobs from local workstation to remote clusters and supercomputers is possible.
  5. Options for structure prediction using the USPEX algorithm (default), random sampling, corrected particle swarm optimization, evolutionary metadynamics, minima hopping-like algorithm. Capabilities to predict phase transition mechanisms using evolutionary metadynamics, variable-cell NEB method, and TSP method.
  6. Options to optimize physical properties other than the energy - e.g., hardness (Lyakhov & Oganov, 2011), density (Zhu et al., 2011), band gap and dielectric constant (Zeng et al., 2014), and many other properties.
  7. Many new features are now in progress. To be described later...

Highlights of users' results

Sodium Pentazolate: a Nitrogen Rich High Energy Density Material

B.A. Steele and I.I. Oleynik (2016). Sodium pentazolate: A nitrogen rich high energy density material. Chemical Physics Letters 643, 21-26. (link).

Sodium pentazolate, a new high energy density material was discovered by researchers from University of South Florida using USPEX, the powerful crystal structure search method. The pentazole anion is stabilized in the condensed phase by sodium cations at pressures exceeding 20 GPa, and becomes metastable upon release of pressure.

Computational clues into the structure of a promising energy conversion catalyst

Ye-Fei Li and Annabella Selloni (2014). Mosaic Texture and Double c-Axis Periodicity of β-NiOOH: Insights from First-Principles and Genetic Algorithm Calculations. The Journal of Physical Chemistry Letters 5(22), 3981–3985. (link).

A research team led by Annabella Selloni, at Princeton University, employed USPEX to obtain insight into the structure of an active component of iron-doped nickel oxide, a highly active catalyst for water oxidation. Based on the results of USPEX searches in combination with DFT calculations, Li and Selloni were able to identify stable tunnel structures of nickel oxide that can explain the observed mosaic texture that forms during reaction. Armed with a better understanding of the material’s structure, the researchers hope to further map out its activity in the reaction.



Prediction of novel phases of Al with Sc or Ta

Bilić, A., Gale, J. D., Gibson, M. A., Wilson, N., & McGregor, K. (2015). Prediction of novel alloy phases of Al with Sc or Ta. Scientific Reports, 5, 9909 (link).

Thermodynamically stable binary alloy phases of Al with Sc or Ta have been investigated. The composition, crystal structures and formation enthalpies of the known stable Al-Sc intermetallics (Al3S, Al2Sc, AlSc, AlSc2 and AlSc3) have been correctly evaluated, as well as that of Al3Ta. In addition, novel phases Al3Sc2 and AlTa7, previously unknown, have been identified as stable.



New sulfur hydride H3S and its exciting superconductivity under high pressures

Defang Duan, Yunxian Liu, Fubo Tian, Da Li, Xiaoli Huang, Zhonglong Zhao, Hongyu Yu, Bingbing Liu, Wenjing Tian & Tian Cui (2014). Pressure-induced metallization of dense (H2S)2H2 with high-Tc superconductivity. Scientific Reports 4, 6968 (link).
Defang Duan, Xiaoli Huang, Fubo Tian, Da Li, Hongyu Yu, Yunxian Liu, Yanbin Ma, Bingbing Liu, and Tian Cui (2015). Pressure-induced decomposition of solid hydrogen sulfide. Phys. Rev. B 91(18), 180502 (link).

A new sulfur hydride H3S that hardly occurs at atmospheric pressure was theoretical predicted through USPEX code to be formed at high pressure by two main ways: 3H2S→2H3S+S,S+3/2H2→H3S. Remarkably, the estimated Tc of Im-3m phase for H3S at 200 GPa achieves a very high value of 191~204 K. It sets a record of superconducting temperature for the current moment. The experimental discovery of superconductivity with a high Tc=203 K and synchrotron XRD experiment in H-S system at high pressure have verified the theoretically predicted results.

Current limitations of USPEX

Because of the high success rate of the method, we have not seen many limitations in practice. It is efficient for systems with up to 100-200 atoms/cell. Difficulties for large systems are due to the increasing cost of ab initio calculations for increasing system sizes, and also due to the rapidly increasing number of energy minima. Our algorithm seems to be very effective in counteracting this effect and will make structure prediction for systems containing many hundreds of atoms affordable in near future.

Becoming a user of USPEX

Please register in our webpage.

Registration

comparison with other methods

Our method was tested several times for comparison with other computational materials design techniques. Below we provide results for the performance of USPEX (evolutionary algorithm), CALYPSO (PSO method), and minima hopping method for Lennard-Jones clusters of different sizes (from Lyakhov et al., 2013).

Success rate (%) Average number of structures until global minima is found Number of calculations
LJ38 (PSO) 100 605 100
LJ38 (USPEX) 100 35 183
LJ38 (MH) 100 1190 100
LJ38 (PSO) 100 1649 20
LJ55 (PSO) 100 159 100
LJ55 (USPEX) 100 11 60
LJ55 (MH) 100 190 100
LJ75 (PSO) 98 2858 50
LJ75 (USPEX) 100 2145 53

Performance of USPEX (evolutionary algorithm) and CALYPSO (PSO method) for TiO2 with 48 atoms/cell, described by the same forcefield (data from Lyakhov et al., 2013 for USPEX and from Lv et al., 2012).

Method Success rate (%) Number of relaxations
USPEX, cell spliting 100 41
USPEX, no symmetry 100 80
USPEX, with symmetry 100 77
CALYPSO, with symmetry 100 156-400
CALYPSO, no symmetry 90 500

References, where the method was exhaustively described

  1. Oganov A.R., Glass C.W. (2006).
    Crystal structure prediction using evolutionary algorithms: principles and applications.
    J. Chem. Phys. 124, art. 244704 (pdf-file)
  2. Glass C.W., Oganov A.R., Hansen N. (2006).
    USPEX – evolutionary crystal structure prediction.
    Comp. Phys. Comm. 175, 713-720 (pdf-file)
  3. Oganov A.R., Ma Y., Lyakhov A.O., Valle M., Gatti C. (2010).
    Evolutionary crystal structure prediction as a method for the discovery of minerals and materials.
    Rev. Mineral. Geochem. 71, 271-298 (pdf-file)
  4. Lyakhov A.O., Oganov A.R., Valle M. (2010).
    How to predict very large and complex crystal structures.
    Comp. Phys. Comm. 181, 1623-1632 (pdf-file)
  1. Oganov A.R., Lyakhov A.O., Valle M. (2011).
    How evolutionary crystal structure prediction works - and why.
    Acc. Chem. Res. 44, 227-237 (pdf-file)
  2. Lyakhov A.O., Oganov A.R., Stokes H.T., Zhu Q. (2013).
    New developments in evolutionary structure prediction algorithm USPEX.
    Comp. Phys. Comm. 184, 1172-1182 (pdf-file)
  3. Niu H.N, Niu S., Oganov A.R. (2019).Simple and accurate model of fracture
    toughness of solids. J. Appl. Phys. 125, 065105 (pdf-file)

Developers

From its initial development in 2005, USPEX proved to be a powerful tool for crystal structure prediction. An increasing number of researchers are using our code. The code is developed mainly by Prof Oganov's research group. The developers circle is also steadily increasing. Here are the list of people paticipating in developing USPEX:

  • Artem R. Oganov
  • Zahed Allahyari
  • Pavel Bushlanov
  • Artem Samtsevich
  • Evgenii Tikhonov
  • Vladimir Baturin
  • Ivan Kruglov
  • Sergey Lepeshkin
  • Efim Mazhnik
  • Arslan Mazitov
  • Sergey Pozdnyakov
  • Zhenhai Wang


Here are the list of the former developers of the USPEX:

  • Andriy Lyakhov
  • Colin W. Glass
  • Harold T. Stokes
  • Qiang Zhu
  • Guangrui Qian
  • Xiao Dong
  • Miguel Salvado, Pilar Pertierra, Qingfeng Zeng, Zamaan Raza, Ravi Agarwal
